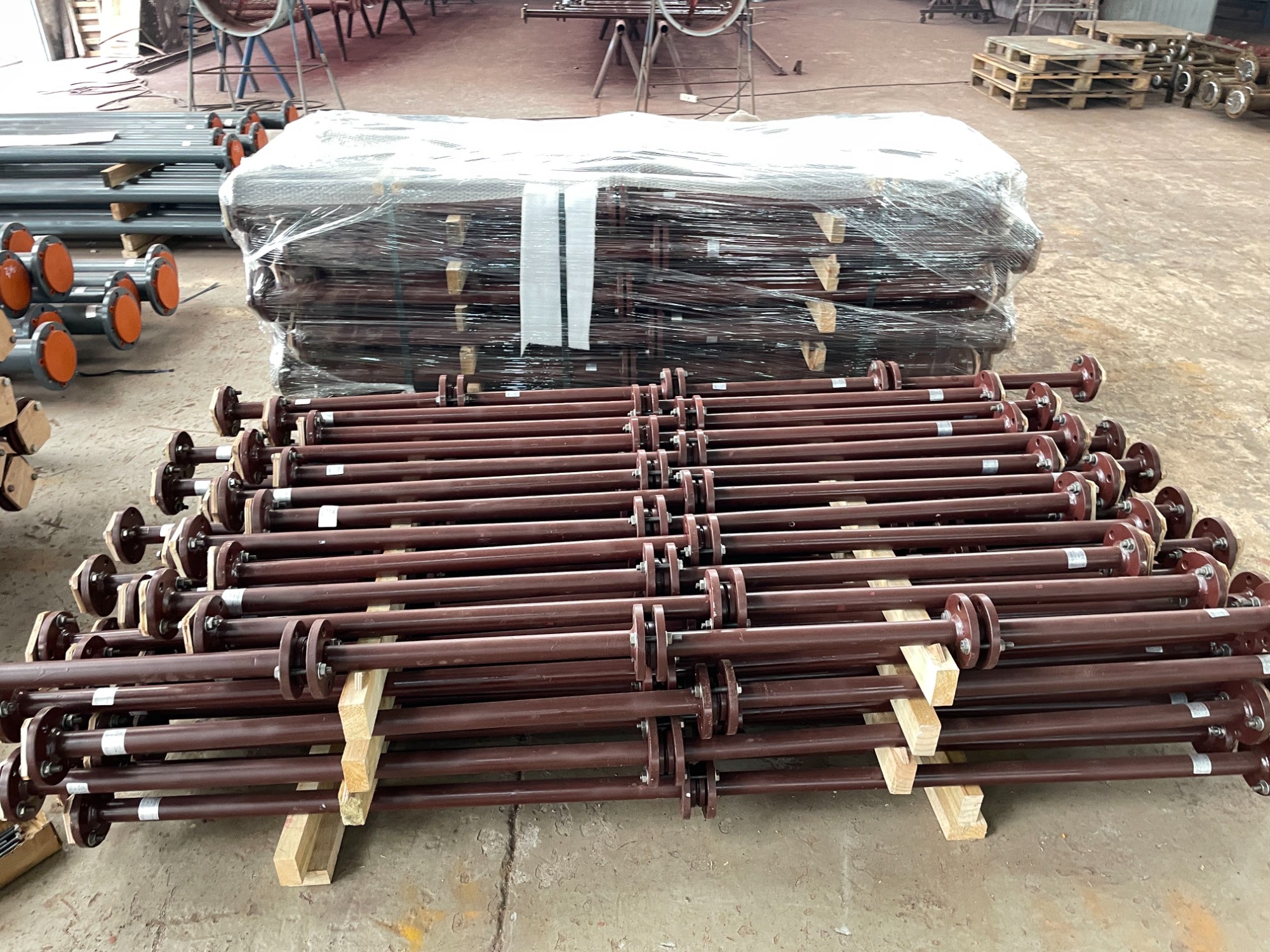

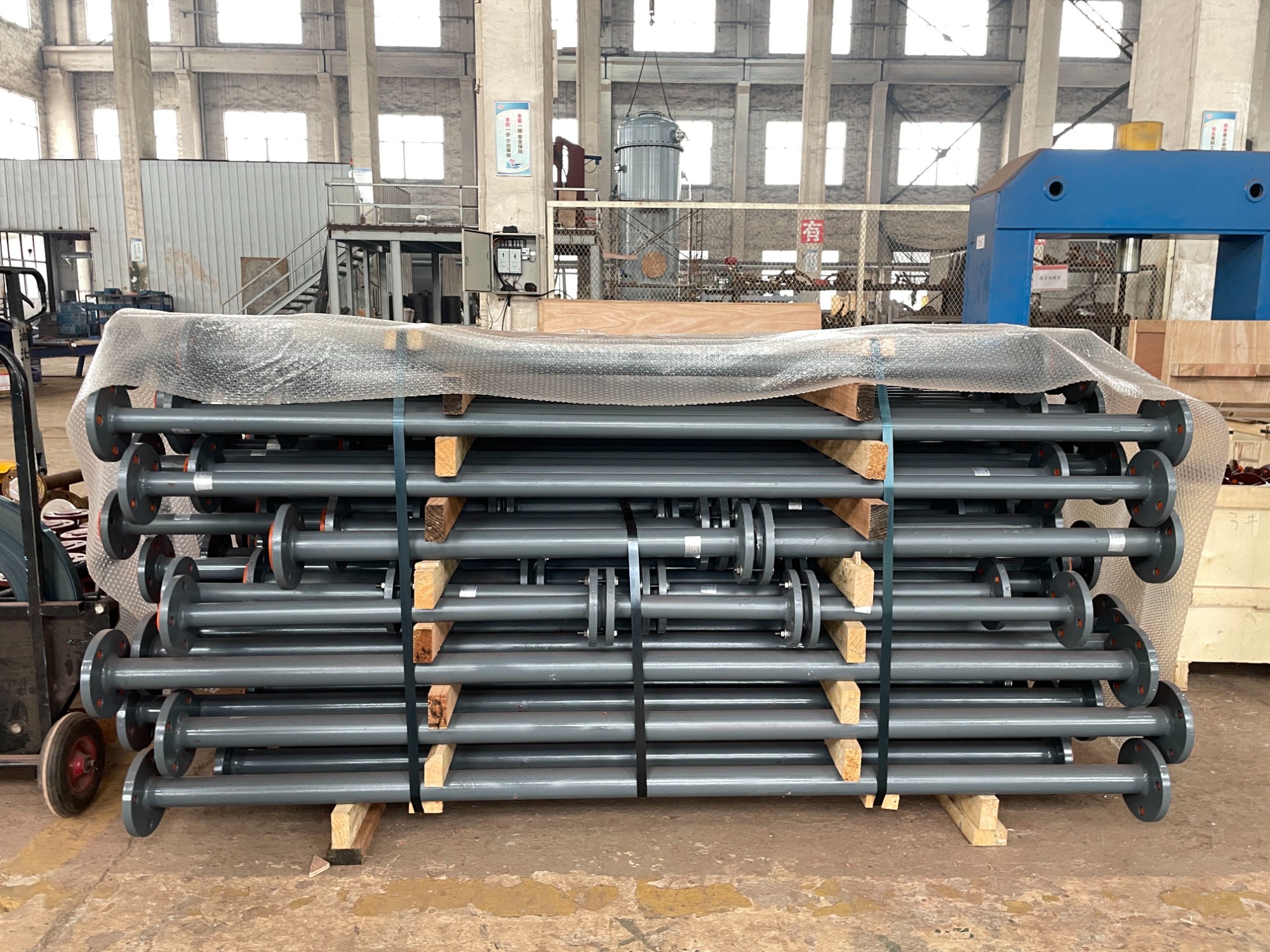

PTFE Lined Pipe

PTFE lined pipe

Nominal Diameter(mm/in.):DN10-DN600(NB1/2-NB24)

Operating temperature: -20℃-180℃

Operating pressure:-0.09MPa-1.6MPa(-0.9bar-16bar)

Pipe: Seamless steel

Flange: ASME B16.5 Class 150/300

Flange options: HG, GB, JB, JIS, BS, DIN Loose flange available

Special pieces of specific or non standard size can be manufactured on request.

Operating instruction of PTFE lined pipe (according to HG/T20538)

Positive pressure: lt shall adopt steel components according to different technical requirements, and the thickness of PTFE wall shall be over 2mm.If the temperature is less than 100℃, the production lenath shall be less than 4m；and if the temperature of 100-150℃, the length shall be less than 3m.and if the temperature of 150-180℃, the length shall be less than 2m.

Negative pressure: Design according to different ambient conditions of the users.
